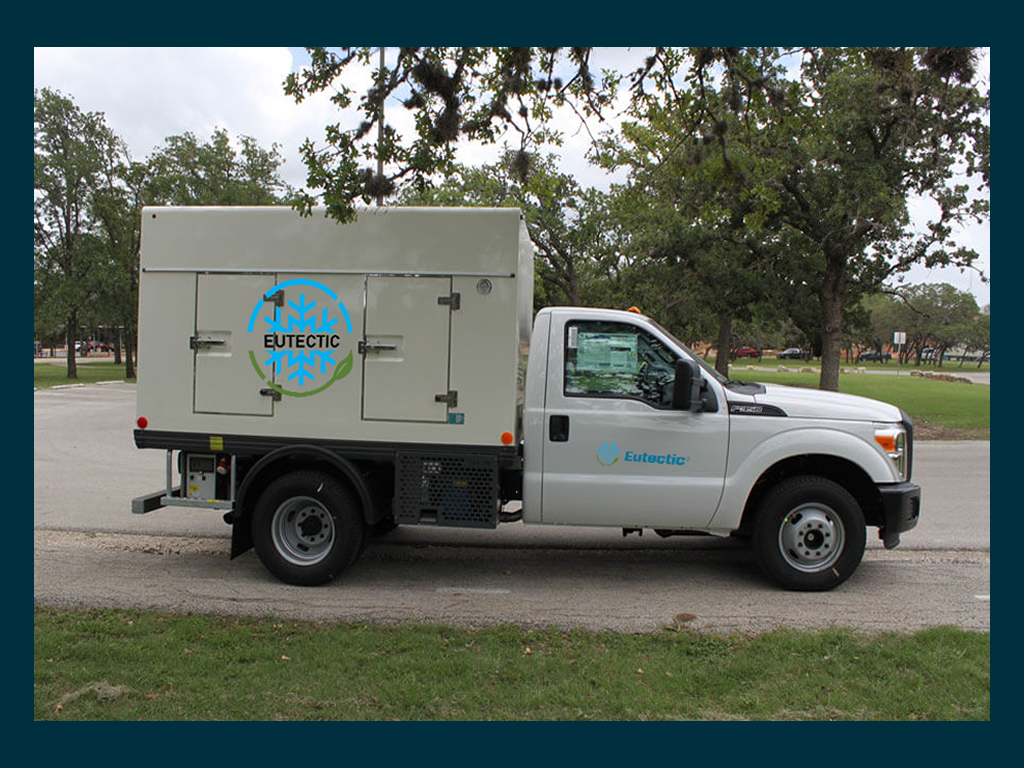

| Model |
Eutectic 2500 |
| Number of side doors |
2+2 |
| External dimensions |
2500x1600x1400mm |
| Internal dimensions |
2300x1400x1195mm |
| Truck Chassis |
Toyota Hilux, Fiat Doblo, Piaggio Porter, Citroen Jumper, Fiat Ducato |
| Operation Tempratures |
−40°C to −20°C |
| Condensing unit |
2,5HP Dorin Compressor, Danfoss products, Condanser, EBM Fan |
| Eutectic plates |
Eutectic plates with zinc coated and with robotic welding(T-EFR-1670) |
| Door opening / day |
150+ |
| Distribution of operation |
10−12 h |
| Pulldown time |
7−9 h (Ambient air temperature + 35°C |
| Body weight |
750 KG without extra assembly |
| Internal volume |
5,3 m3 |
| Payload |
up to 550 kg |
